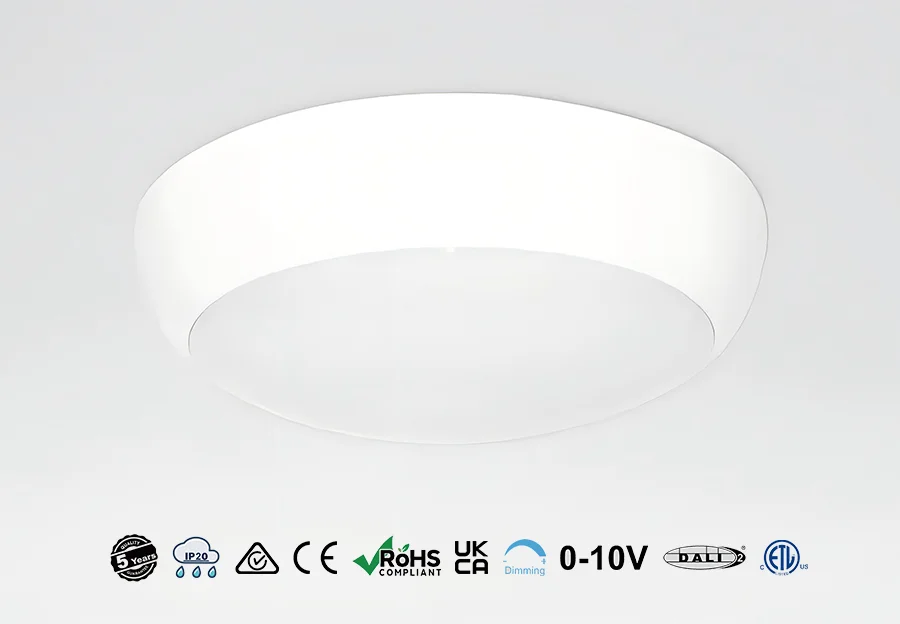

LED Bulkhead IP65 IK10
Lighting innovation in all shapes (and colours)
IP65/IK10-rated extreme environment lighting fixture featuring 120lm/W efficiency, modular plug-and-play components (sensors/emergency/driver), and DIP-switch power/CCT control. Includes 3-hour lithium backup, tool-free bezel swaps (Black/Steel/Chrome), and side-cable entry for 30% installation cost reduction.
Key Features:
Durability: IP65 waterproof/dustproof, IK10 impact resistance
Efficiency: 120lm/W LED performance
Flexibility: Modular design with interchangeable sensors/backups
Smart Control: DIP-switch adjusts power/CCT without tools
Installation Savings: Side-cable entry cuts labor costs by 30%
Customization: Tool-free bezel color swaps (3 finishes)
Backup: 3-hour lithium emergency operation
Engineered for industrial,indoor applications requiring robust, cost-effective illumination with field-serviceable components.
Register Now
Log in to view the download manual
Product Line Map

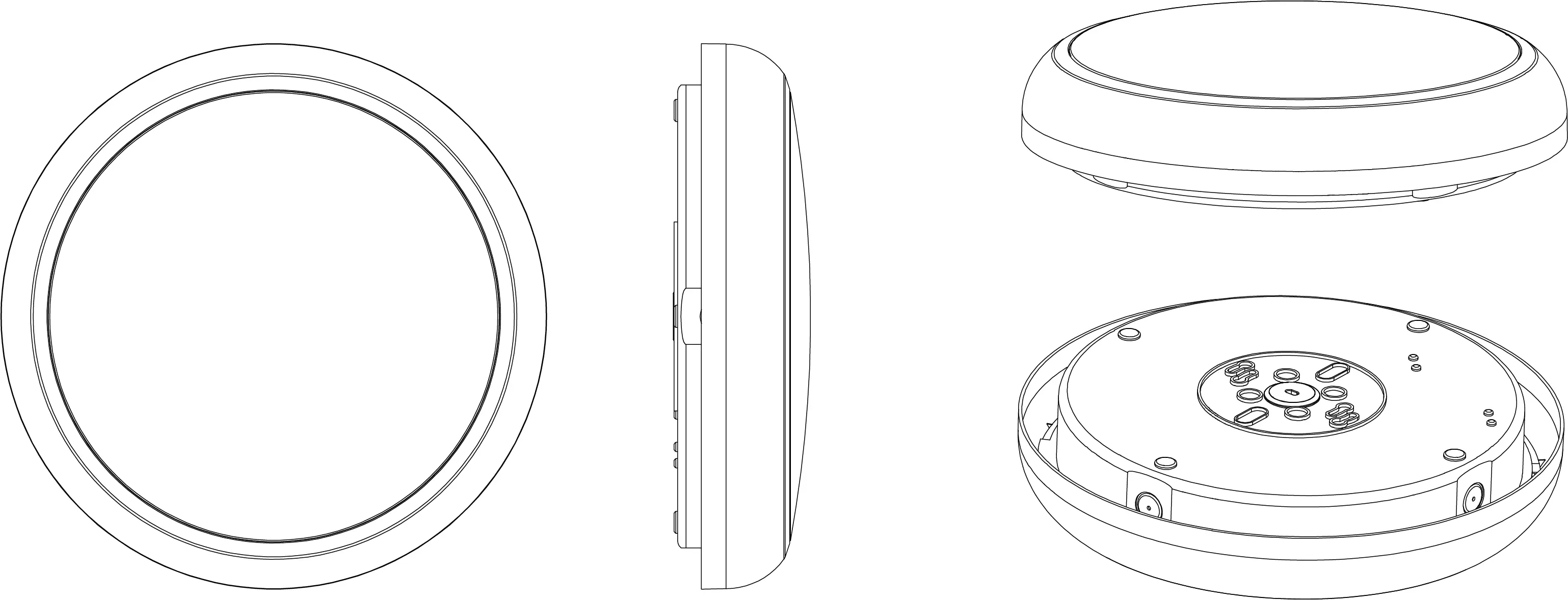

Line drawing
Click to view our PDF brochure to learn more.
Specifications
LED Bulkhead Lamp Specs 7-17
Click to view our PDF brochure to learn more.
Product Certificates
EMC Test Report LCSB03134024E_UKCA-EMC
Click to view our PDF brochure to learn more.
EMC Test report
Click to view our PDF brochure to learn more.
LVD Test report LCSB01024035S-CE-LVD-Standard & Sensor
Click to view our PDF brochure to learn more.
Test Report
IES RAVOLJ1380A J380 ceiling light 20W 5000K 100 light effect RA80 100D diffusion plate white code adjustment color temperature basic model _1126
Click to view our PDF brochure to learn more.
IES RAVOLJ1380A J380 ceiling light 20W 5000K 100 light effect RA80 100D diffusion plate white code adjustment color temperature emergency model
Click to view our PDF brochure to learn more.
JFQ(RAV20230918)RAVOLJ2380A 12W-16W-20W 3000K-4000K-5000K J Series 380 Ceiling Light White
Click to view our PDF brochure to learn more.
Installation Instructions
J Series Installation Instructions
Click to view our PDF brochure to learn more.
From Concept to Creation
The Art of Lighting
You have the choice
IP65 Ceiling Light Round Style, make your lovely home with more happiness.3 Sizes for your option with 3 wattage, you can choose the correct product according to your lovely rooms.Super slime design with OEM Colors trims, this Ceiling Light can be made into White, Black,Polished Chrome, Matt Chrome, etc, all depends on your requirement.
Feature
Color Temperature Changeable, you can choose warm white, natural white or cool white by the DIP switch on the back of the ceiling light, offer a better lighting in your lovely home.High lumen output for the LED module to meet with the New ERP2.0 requirement,and also can be made into Tuya WiFi smart control for your Smart Home.
High energy efficiency
Application in your lovely room, you can choose warm white, natrual white and cool white accordingly. Easy installation, with twist and lock style for the diffuser, very easy to install the lamp, save your time and money.

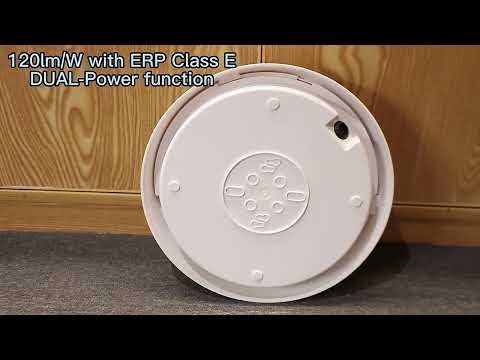

Product Video
Click to view our YouTube product video and see how easy it is to transform your environment with our innovative lighting solutions.
Create a home that Revitalizing Every Inch of Light
chips with optical lens
Adopt high-quality LED chips with low light decay
Product Parameters
- Size：∅ 320MM / 380MM
- Wattage： 9W/12W/14W 12W/16W/20W
- Lumen：1200-1600lm 1600-2000lm
- Voltage：120-270 VAC 、 220-240VAC
- CCT Change：2700K~5000K
- CRI：Ra>80
- SDCM：SDCM <3
- Beam Angle：100°
- Dimmable Option：Triac-dim, DALI, 0-10V
- Material：PC / ABS
- Environment：Indoors
- Sensor Function：Master-slave sensor, Corridor sensor
- Installation：Suspended mounted
- Approval：CE,EMC,LVD,ROHS,ERP,UKCA,ETL,SAA
- Lifespan：50,000hrs
- IP：IP65
- IK：IK10
- UGR：3Hrs emergency
