COB LED Grilled Downlight
Lighting innovation in all shapes (and colours)
Product Features：
1.DIY design for easy junction into 2, 3 4 heads, just need to keep one stocks to meet different project requirement.
2.DIY design of Reflector set, can replace the reflector by yourself.
3.20W 30W 40W available, 24 degree & 45 degree Alu reflector, anti-UV design.
4.Two size of trims: 155*155mm and 190*190mm for bigger cutout, even can make round cutout.
5.CE SAA ERP(Lifud Flicker-free Driver) Approval
6.Dali / 0-10V Dimming available(Lifud / Meanwell drivers)
7.Tuya Smart Control compatible with Alexa/Google Home
Register Now
Log in to view the download manual
Product Line Map

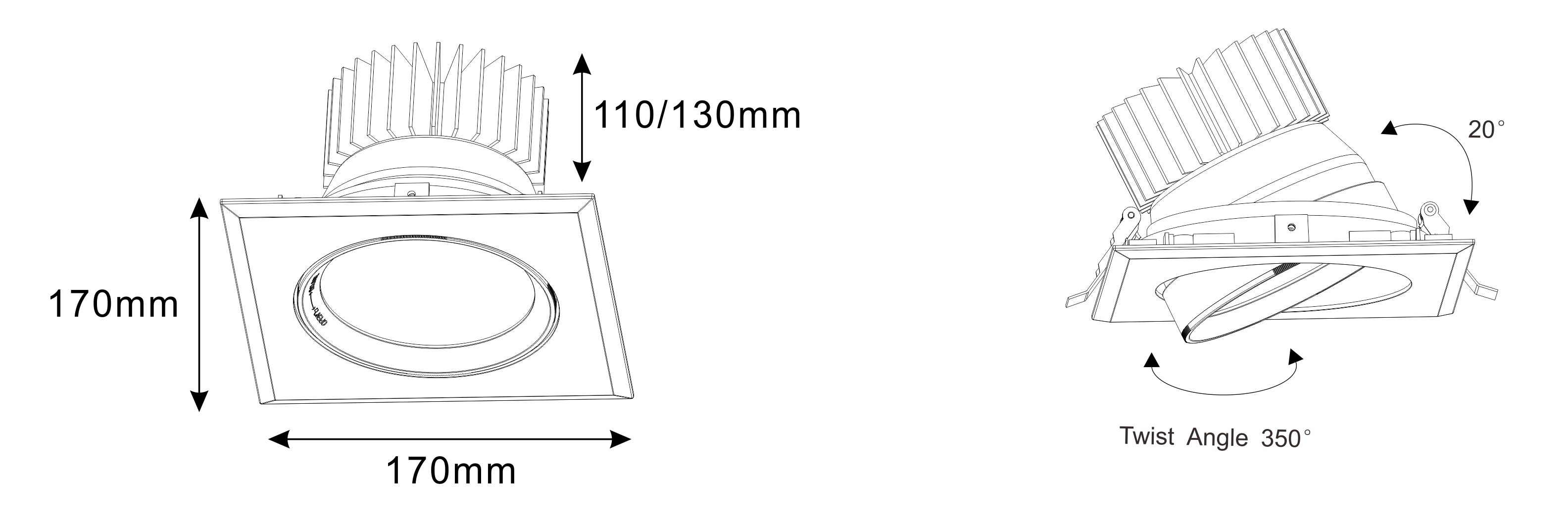

Bean Gallbladder Lamp-Line Drawing
Click to view our PDF brochure to learn more.

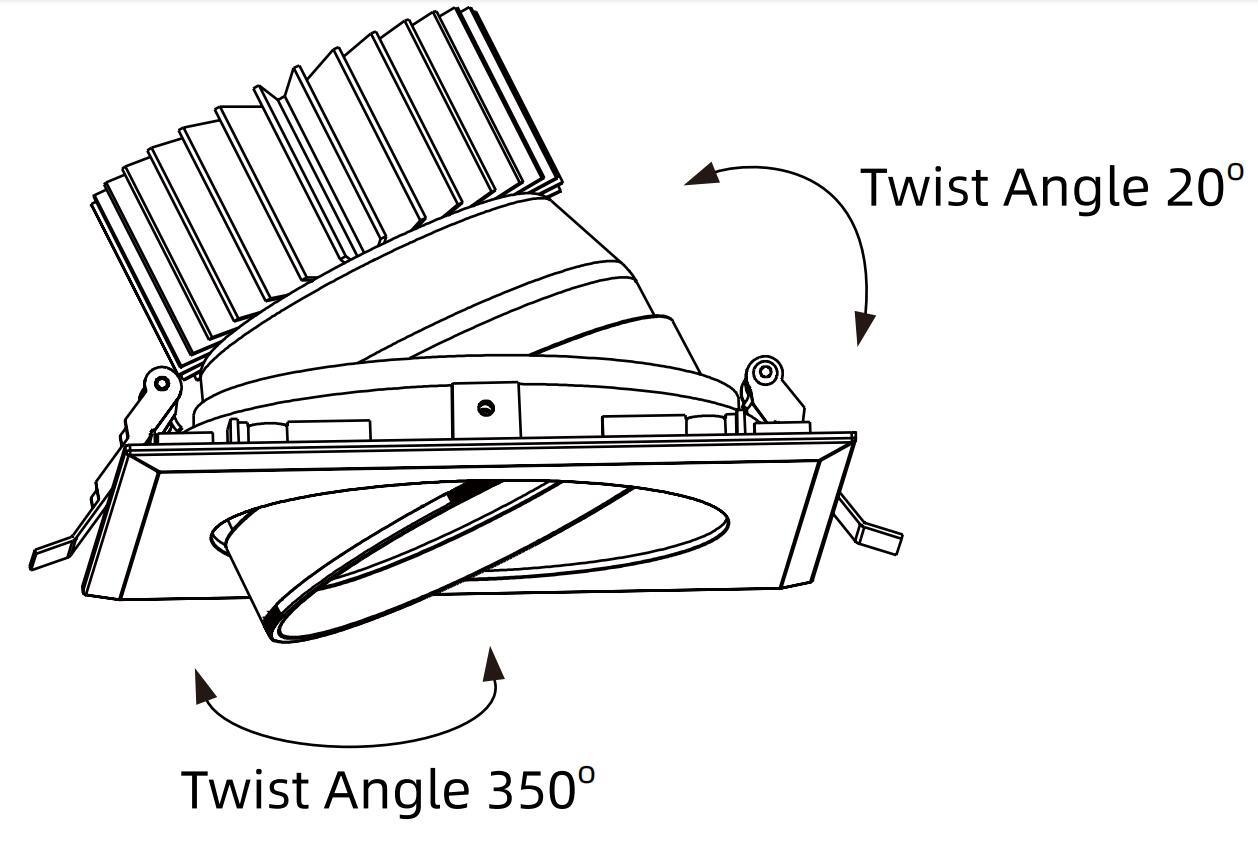

2D Figure
Click to view our PDF brochure to learn more.

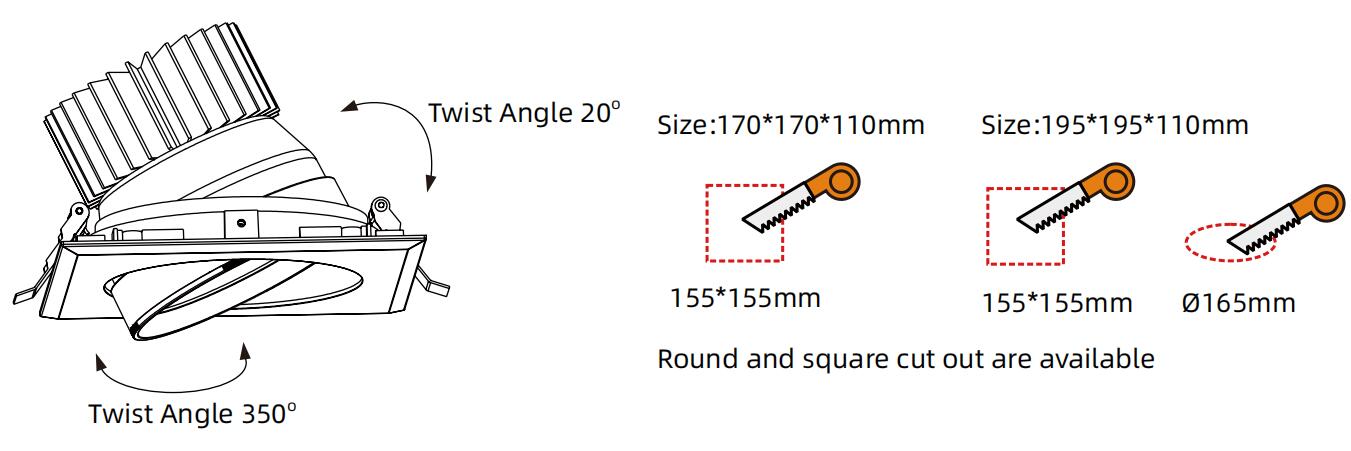

2D Figure 1
Click to view our PDF brochure to learn more.
Specifications
Bean gall lamp-large ring specification
Click to view our PDF brochure to learn more.
Bean gall lamp-Specification
Click to view our PDF brochure to learn more.
Product Certificates
LCS191008149BS001-report
Click to view our PDF brochure to learn more.
LCSB11243032S-3CCT Downlight - CE-LVD Test Official Report
Click to view our PDF brochure to learn more.
LCSB11243032S-Certificate(2)
Click to view our PDF brochure to learn more.
LCSB11243033E-EMC-CE Attestation of Compliance(1)
Click to view our PDF brochure to learn more.
LCSB11243033E-LED Light-EMC-Formal Report
Click to view our PDF brochure to learn more.
LCS200323013DR-Conventional downlight ROHS
Click to view our PDF brochure to learn more.
Test Report
30W C series single head bulb Jingyuan-3000K 2016-06-18
Click to view our PDF brochure to learn more.
50W C Series Bean Bulb Citizen 3000K (100lm) 2016-07-19
Click to view our PDF brochure to learn more.
60W C Series Double Head Bean Gallbladder Lamp Jingyuan-3000K 2016-06-18
Click to view our PDF brochure to learn more.
Installation Instructions
From Concept to Creation
The Art of Lighting
You have the choice

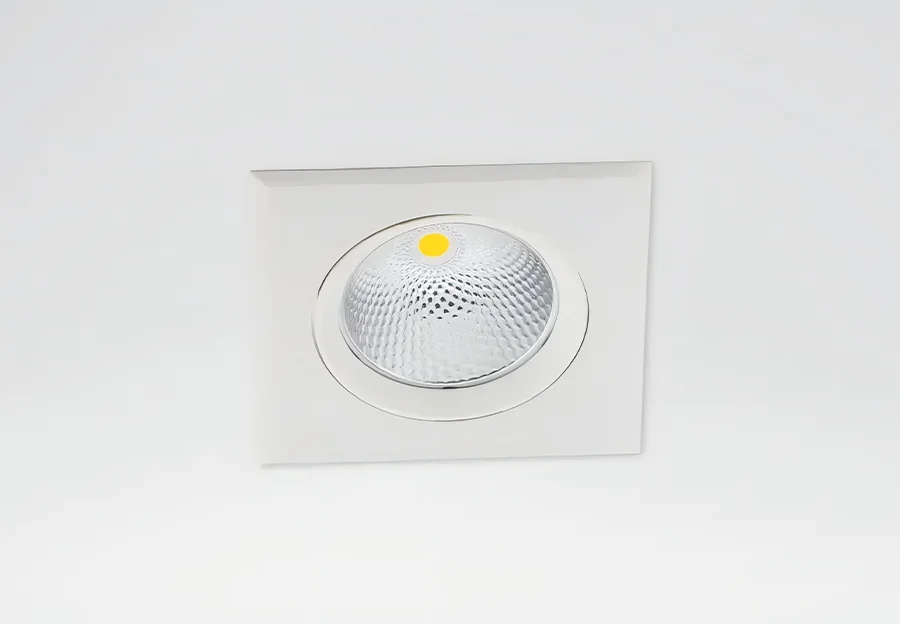

COB LED grilled downlight with high quality aluminum lamp body, can offer 10W, 12W, 20W, 30W, 40W according to your project requirements. DIY solution you can assemble it for 2 heads, 3 heads or 4 heads easily, just one downlight, you can make into different combination.
We can offer warm white, neutral white and cool white for this COB downlight, CRI>80, you can choose the color temperature according to your projects.
Feature
Die-casting Alu lamp body with perfect heat-dissipation to make the lamp cooling faster, offer a better protection for the COB chips and make their lifetime more longer.
High energy efficiency

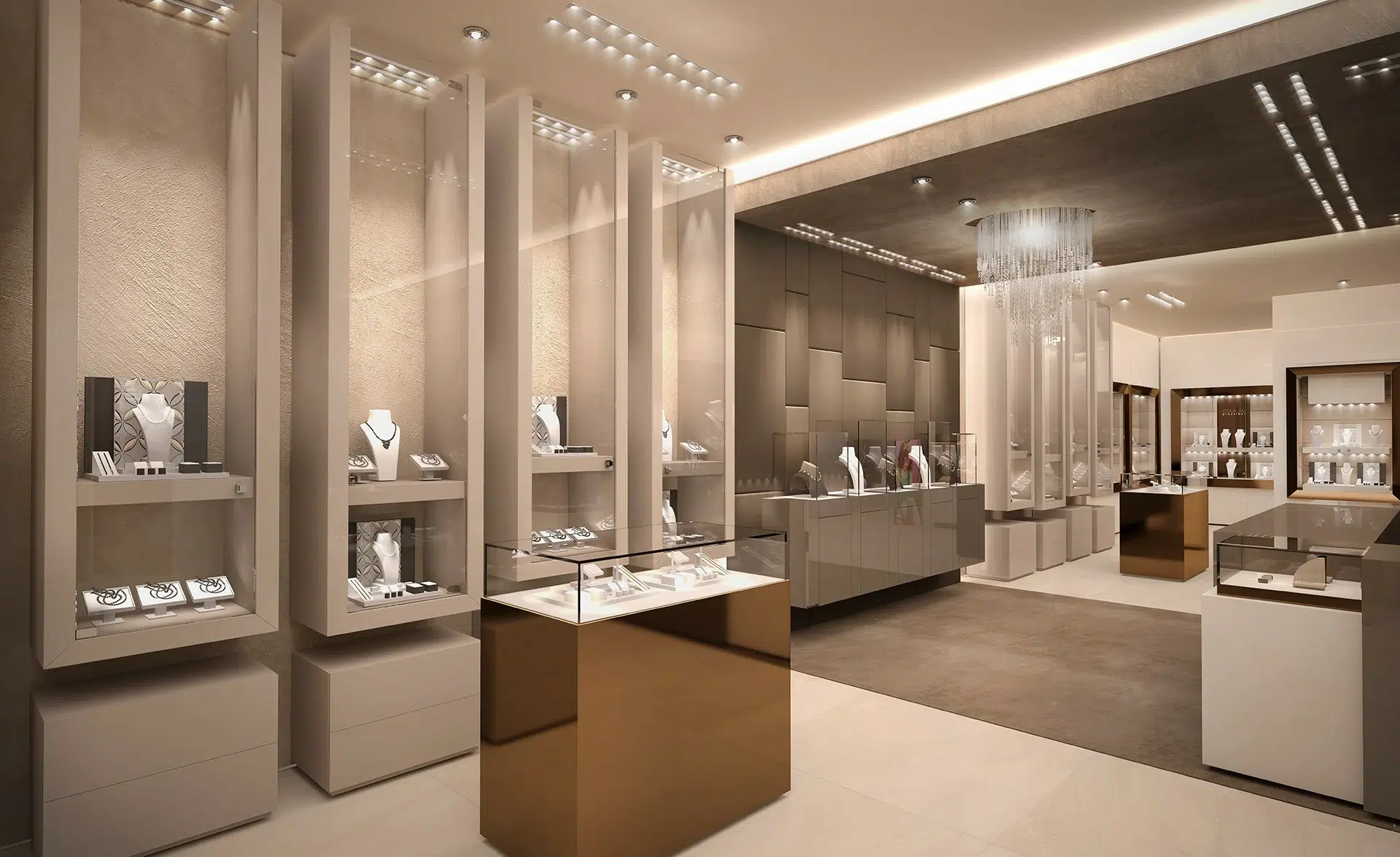

Application, this COB Downlight can be install in the hotel, shopping mall projects, widely use on different kind of projects.
Product Video
Click to view our YouTube product video and see how easy it is to transform your environment with our innovative lighting solutions.
Create a home that Revitalizing Every Inch of Light
chips with optical lens
High quality LED chip, light decay is small
Product Parameters
- Model：RAV20A1C41、RAV30A1C41、RAV40A1C41
- Power：20W、30W、40W
- Input voltage：AC220-240V 50/60Hz
- Luminous Flux ：1800-2000lm、2800-3000lm 、3600-4000lm
- CCT ：3000K/4000K/5000K
- CRI：Ra>80 / Ra>90
- Color：White / Black
- Beam Angle：60° UG<19
- Material：Aluminium
- Optional：Triac PWM dim, 0-10V dim,DALI dim drive
