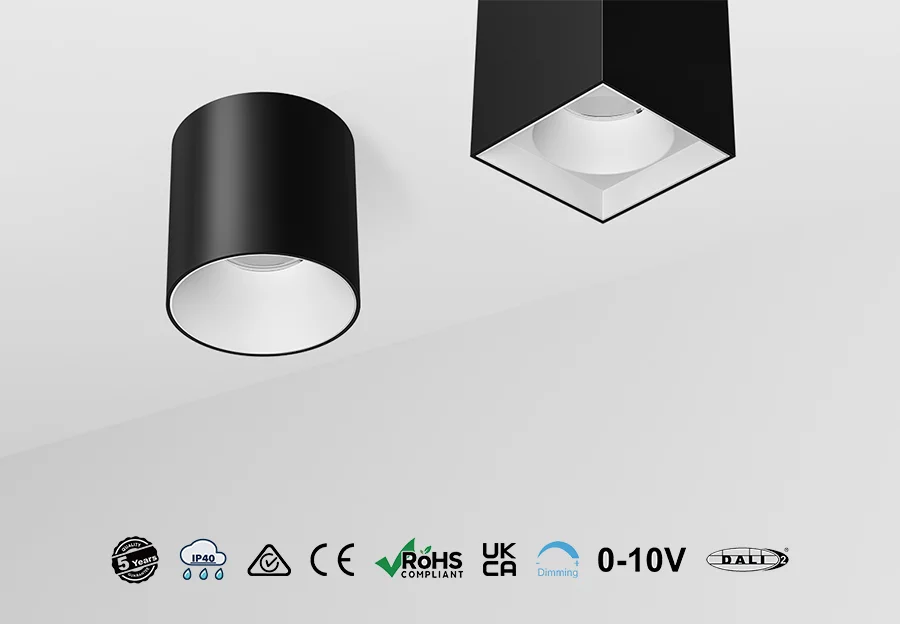

surface mounted downlights
Lighting innovation in all shapes (and colours)
Energy saving: Our LED downlight saves more than 90% power compared with
the incandescent light bulb meanwhile it can provide the perfect luminance. Long lifespan:Our LED downlight has more than 50,000 hours lighting life which
is equal even more than 5 to 10 times of the lifespan of the energy saving lamp▪ Good heat dissipation: epoxy encapsulation, lower calorific value. Green health environmental protection:No Hg,Pb and UV.▪ High CRI: Ra>80, Ra>90 makes colors look like the things really do.
Register Now
Log in to view the download manual
Product Line Map
Specifications
SF.C&SF.Z Surface Mounted Downlight Specs 2024-7-12
Click to view our PDF brochure to learn more.
Product Certificates
Test Report
JFQ(RAV20240578)SF.C1073A 12W 3000K RA90
Click to view our PDF brochure to learn more.
IES SF.C1073A 12W 3000K RA90
Click to view our PDF brochure to learn more.
Installation Instructions
From Concept to Creation
The Art of Lighting
You have the choice
▪ Energy saving: Our LED downlight saves more than 90% power compared with the incandescent light bulb meanwhile it can provide the perfect luminance.
▪ Long lifespan:Our LED downlight has more than 50,000 hours lighting life which is equal even more than 5 to 10 times of the lifespan of the energy saving lamp.
▪Good heat dissipation: epoxy encapsulation, lower calorific value.
▪Green health environmental protection:No Hg,Pb and UV.
▪ High CRI: Ra>80, Ra>90 makes colors look like the things really do.
Feature
LED DOWNLIGHT is widely applied to which traditional fluorescent lamps would normally be used.It appears in anyplace that needs light, such as banks, hotels,
stores, commercial buildings, shopping malls,supermarket,underground garage &
etc.
High energy efficiency
Application, this COB Downlight can be install in the hotel, shopping mall projects, widely use on different kind of projects. Also can come with Tuya WiFi smart control for your smart projects.
Product Video
Click to view our YouTube product video and see how easy it is to transform your environment with our innovative lighting solutions.
Create a home that Revitalizing Every Inch of Light
chips with optical lens
High quality LED chip, light decay is small
Product Parameters
- Size：∅72*H78 ∅94*H95 72.5*72.5*H78 91*91*H95
- Wattage： 12W 20W 12W 20W
- Voltage：220-240VAC
- Lumen：90lm/W 86lm/W 86lm/W 85lm/W
- CCT Change：3000K / 4000K / 5000K
- CRI：Ra>80 Ra>90
- SDCM：SDCM <6
- Beam Angle：15°24°36°50
- Dimmable Option：Triac-dim, DALI dim，0-10V dim
- Material：Aluminum
- Environment：Indoors
- Sensor function： Shopping malls, showcases, showrooms
- Installation：Surface mounted
- Approval：CE,EMC,LVD,ROHS,ERP,UKCA
- Lifespan：50,000hrs
- IP：IP20
- IK：IK03
- UGR：3 years/5 years
