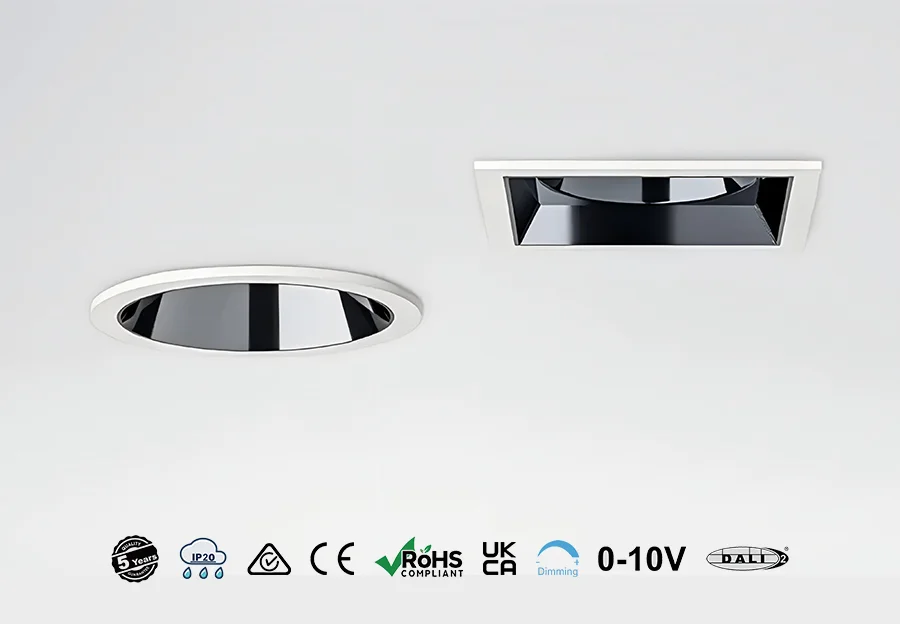

SPS Series Modular Downlight
Lighting innovation in all shapes (and colours)
Feature
1.Die-cast aluminum material, efficient heat dissipation, effective protection of lamps and extended service life
2.Simple and stylish, can be freely matched with different optical parts and outer rings, suitable for home
lighting and commercial lighting
3.Akzo black&white colors of surface treatment for good appearences 4.Anti glare UGR<19, Imported CITIZEN lamp chipsCOB chip, more reliable performance,
5.high color rendering, high brightness, eye protection without flicker 6.Special spring sheet, easy to install and prevents damage to the ceiling
Register Now
Log in to view the download manual
Product Line Map
-75-MR16 module line diagram 10W
Click to view our PDF brochure to learn more.
75-MR16 module line diagram 15W
Click to view our PDF brochure to learn more.
Specifications
COB LED Module Spot Specs-Rayven
Click to view our PDF brochure to learn more.
Product Certificates
Test Report
IES SP.S1055M 10W 3500K RA90
Click to view our PDF brochure to learn more.
IES SP.S1065M 15W 4000K RA90
Click to view our PDF brochure to learn more.
JFQ(FS20240416)SP.S1055M 10W 3000K RA90
Click to view our PDF brochure to learn more.
JFQ(FS20240416)SP.S1065M 15W 4000K RA90
Click to view our PDF brochure to learn more.
Installation Instructions
From Concept to Creation
The Art of Lighting
You have the choice
We can offer warm white, neutral white and cool white for this COB downlight, CRI>80,you can choose the color temperature according to your projects.And compatible with your local triac dimmers perfectly.
Feature
Energy saving: Our LED downlight saves more than 90% power compared with the incandescent light bulb meanwhile it can provide the perfect luminance.
Long lifespan:Our LED downlight has more than 50,000 hours lighting life which is equal even more than 5 to 10 times of the lifespan of the energy saving lamp.
Good heat dissipation: epoxy encapsulation, lower calorific value.
Green health environmental protection:No Hg,Pb and UV.
High CRI: Ra>80, Ra>90 makes colors look like the things really do.
High energy efficiency
LED DOWNLIGHT is widely applied to which traditional fluorescent lamps would normally be used.It appears in anyplace that needs light, such as banks, hotels, stores, commercial buildings, shopping malls,supermarket,underground garage & etc.
Product Video
Click to view our YouTube product video and see how easy it is to transform your environment with our innovative lighting solutions.
Create a home that Revitalizing Every Inch of Light
chips with optical lens
High quality LED chip, light decay is small
Product Parameters
- Size：∅50*55.5 ∅50*65.5
- Wattage：10W 15W
- Voltage：220-240VAC
- Lumen：90lm/W 82lm/W
- CCT Change：3000K/4000K/5000K
- CRI：Ra>80 Ra>90
- SDCM：SDCM <3
- Beam Angle：15°24°36°55°
- Dimmable Option：Triac-dim, DALI dim，0-10V dim
- Material：Aluminum
- Environment：Indoors
- Applications： Shopping malls, showcases, showrooms
- Installation：recessed mounting
- Approval：CE, SAA, ERP, UKCA
- Lifespan：50,000hrs
- IP：IP20
- IK：IK03
- Warranty：3 years/5 years
