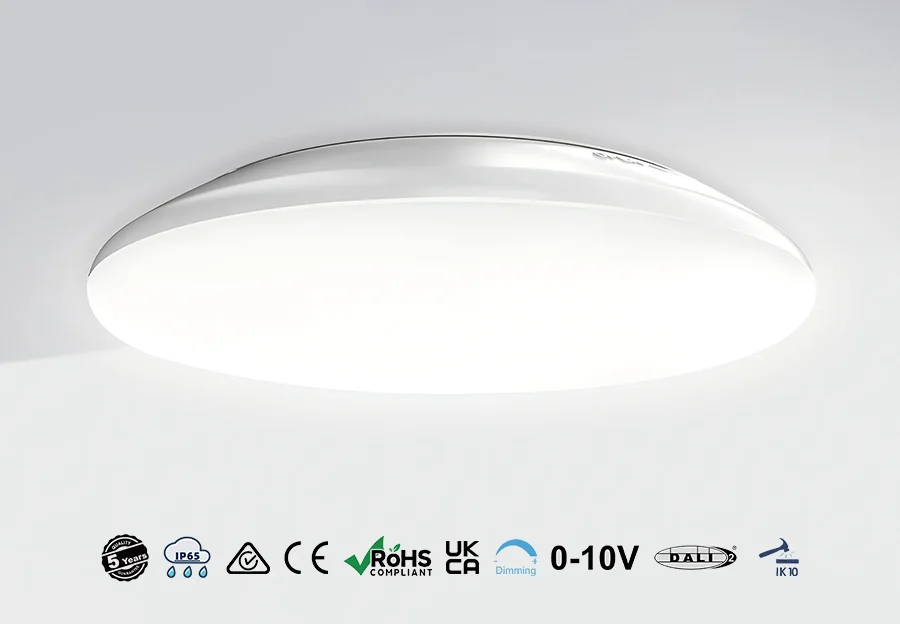

LED Oyster IP65 IK10
Lighting innovation in all shapes (and colours)
IP54/IP65-rated & IK10-resistant flicker-free lighting fixture with 120lm/W efficiency and 180° ultra-slim profile. Features CCT/dimming control, 3-hour emergency backup, and smart connectivity (Tuya/Alexa/DALI). Sensor options include microwave, corridor mode, and master-slave control. Tool-free bezel swaps enable quick installation. Ideal for residential and public spaces requiring durable, customizable illumination.
Key Specs:
Durability: IP54/IP65 waterproof/dustproof, IK10 impact resistance
Performance: 120lm/W, flicker-free operation
Smart Control: CCT/dimming via Tuya/Alexa/DALI, sensor compatibility
Emergency Backup: 3-hour lithium-powered operation
Design: 180° ultra-slim form factor, tool-free bezel swaps
Installation: Quick setup with side-cable entry
（Streamlined technical details while emphasizing key benefits: durability, smart features, and installation efficiency. Grouped related specs for clarity.）
Register Now
Log in to view the download manual
Product Line Map
250 - line drawing
Click to view our PDF brochure to learn more.
300 - line drawing
Click to view our PDF brochure to learn more.
380 - line drawing
Click to view our PDF brochure to learn more.
Specifications
B Series IP65 IK10 LED Ceiling Light SPEC 20240423
Click to view our PDF brochure to learn more.
Product Certificates
LCS180824015BE-EMC Report-15
Click to view our PDF brochure to learn more.
Certificate ND 183238 s
Click to view our PDF brochure to learn more.
Test Report
RAV180LB11 18W-25W 3000K-4000K-5000K RA80 300mm 20240424
Click to view our PDF brochure to learn more.
Installation Instructions
Installation Manuel
Click to view our PDF brochure to learn more.
From Concept to Creation
The Art of Lighting
You have the choice
Super slime design with OEM Colors trims, this Ceiling Light can be made into White,Black, Polished Chrome, Matt Chrome, etc, all depends on your requirement.
Feature
Color Temperature Changeable, you can choose warm white, natural white or cool white by the DIP switch on the back of the ceiling light, offer a better lighting in your lovely home.High lumen output for the LED module to meet with the New ERP2.0 requirement,and also can be made into Tuya WiFi smart control for your Smart Home.IP54 rated to stop the insets & dust going into the lamp body, no maintenance in the future.
How to install me
Easy installation, with twist and lock style for the diffuser, very easy to install the lamp, save your time and money. SAFETY WARNING: The installation should be carried out by a qualified electrician in compliance with the current edition of the IEE Wiring Regulations.
Product Video
Click to view our YouTube product video and see how easy it is to transform your environment with our innovative lighting solutions.
Create a home that
Revitalizing Every Inch of Light
High power conversion efficiency
High energy efficiency,no flicker
chips with optical lens
Use high quality led chips, low light decay
IP54 WATERPROOP
To stop water and insets going inside
LED Workspace Light
Provides bright and even lighting
Product Parameters
- Size：∅ 250MM / 300MM / 380MM
- Wattage：12W /18W, 18W/25W, 25W/35W
- Voltage：220-240VAC
- Lumen：120LM/W, UPTO, 135LM/W
- CCT Change：2700K~5000K
- CRI：Ra>80
- SDCM：SDCM <3
- Beam Angle：110°
- Dimmable Option：Triac-dim, DALI dim, Tuya Smart Dim
- Material：PC
- Environment：Indoors
- Sensor Function：Microwave Sensor, Master Slave Sensor
- Installation：Surface mounted
- Approval：CE,EMC,LVD,ROHS,ERP,UKCA
- Lifespan：50,000hrs
- IP：IP65, IP54
- IK：IK10
- Emergency：3 hours with integrated Emergency driver
