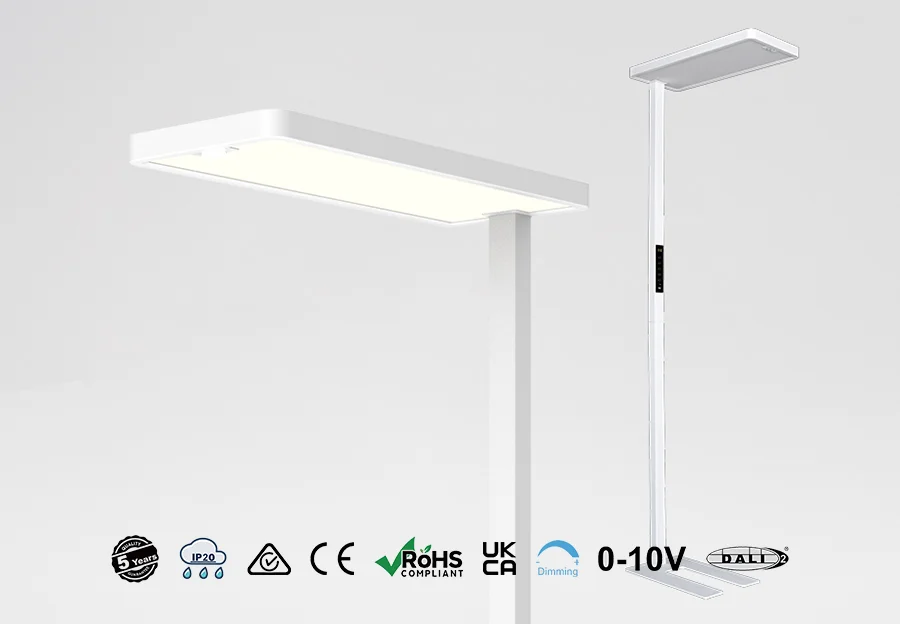

Free-Standing Luminaire
Lighting innovation in all shapes (and colours)
A variety of combinations of lamp head design are accessible for office lighting scenes consisting of a variety of desks, such as panel style, reflector style and optical lens style. So whatever your office plan, you can get your best lighting solution accordingly.
With upper and lower lighting ratio in 7:3, can make the UGR<13, and with CRI>90, SDCM<3 offer a soft & no glare lighting output, and make the whole office with a very comfortable lighting, no harm to your eyes.
Register Now
Log in to view the download manual
Product Line Map
2D Line Drawing
Click to view our PDF brochure to learn more.
Specifications
Free Stand Floor Lamp 4-30
Click to view our PDF brochure to learn more.
Product Certificates
Test Report
IES Report 100W 3000K
Click to view our PDF brochure to learn more.
JFQ Syphere Test Report 100W 3000K-4000K-5000K RA80 Panel
Click to view our PDF brochure to learn more.
Installation Instructions
Installation Manuel
Click to view our PDF brochure to learn more.
From Concept to Creation
The Art of Lighting
You have the choice
Rayven Lighting just launch a new range of Free Standing Luminaires which come with mimialist design, excellent material selection and production technology, and rich texture on the surface.
Feature
A variety of combinations of lamp head design are accessible for office lighting scenes consisting of a variety of desks, such as panel style, reflector style and optical lens style. So whatever your office plan, you can get your best lighting solution accordingly.
High energy efficiency
With upper and lower lighting ratio in 7:3, can make the UGR<13, and with CRI>90,SDCM<3 offer a soft & no glare lighting output, and make the whole office with a very comfortable lighting, no harm to your eyes.
Product Video
Click to view our YouTube product video and see how easy it is to transform your environment with our innovative lighting solutions.
Create a home that Revitalizing Every Inch of Light
chips with optical lens
High quality LED chip, light decay is small
Product Parameters
- Size：680 * 280 * 2033mm
- Wattage： 100W (Up 70W /Down 30W)
- Voltage：120-270Vac/220-240VAC
- Lumen：100lm/W
- CCT Change：3000K / 4000K / 5000K
- CRI：Ra>80
- SDCM：SDCM <6
- Beam Angle：X:150° Y:140°
- Dimmable Option：Screen touch dimming
- Material：Iron / Aluminum
- Environment：Indoors
- Sensor function： PIR Human Present Sensor
- Installation：Floor lamp
- Approval：CE,EMC,LVD,ROHS,ERP,UKCA
- Lifespan：50,000hrs
- IP：IP20
- IK：IK03
- Warranty：3 years
