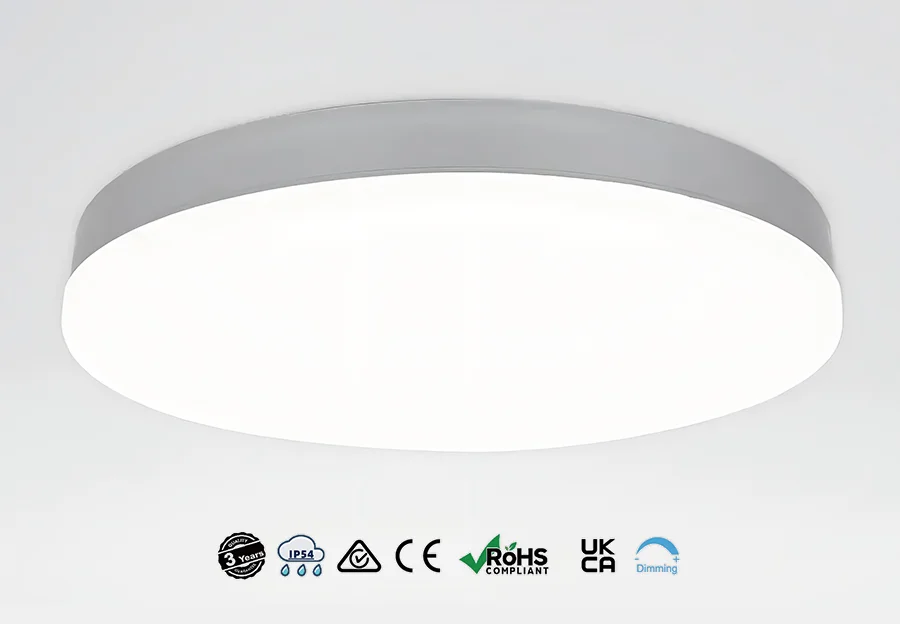

ECO IP54 CEILING LIGHT
Lighting innovation in all shapes (and colours)
This microwave sensor-equipped LED fixture offers seamless 100%-10%-0% dimming functionality, paired with IP54 protection against dust and insects. It features 3CCT adjustability via DIP switch, Triac dimming compatibility, and a flicker-free driver compliant with the latest Erp 2.0 standards. Optional Tuya WiFi smart control enables remote CCT adjustment and dimming, integrating with smart home ecosystems. Designed for user-friendly installation, it’s ideal for residential lighting in bathrooms, kitchens, and balconies, combining energy efficiency with versatile lighting control.
Key Features:
Dimming Technology: Microwave sensor with 100-10-0% step-less dimming
Durability: IP54-rated enclosure prevents dust/insect ingress
Customization: 3CCT selection via DIP switch (Triac dimming ready)
Performance: Flicker-free operation meets Erp 2.0 requirements
Smart Options: Optional Tuya WiFi for app/voice control (Alexa/Google)
Installation: Tool-free setup with safety hook support
Register Now
Log in to view the download manual
Product Line Map
D250 2D Line Drawing
Click to view our PDF brochure to learn more.
D300 2D Line Drawing
Click to view our PDF brochure to learn more.
D380 2D Line Drawing
Click to view our PDF brochure to learn more.
Specifications
D Series LED Ceiling Specs 4-30
Click to view our PDF brochure to learn more.
RAVOLD2300A Corridor Sensor Modular Specification 7-31
Click to view our PDF brochure to learn more.
Product Certificates
LCS210811034BS-Test report-IP54
Click to view our PDF brochure to learn more.
LCS210811035BE-Attestation of Compliance
Click to view our PDF brochure to learn more.
LCS210811036BS-Certificate-CE-LVD
Click to view our PDF brochure to learn more.
Test Report
IES 380mmD series ceiling light 3000K 30W
Click to view our PDF brochure to learn more.
JFQ (ACL26W-3T) 380mmD series ceiling light white 26W5000K120 degree dimming RA80 SMD CCT change 2
Click to view our PDF brochure to learn more.
Installation Instructions
Manual Instruction
Click to view our PDF brochure to learn more.
From Concept to Creation
The Art of Lighting
You have the choice
Produtct Show: OEM Colors available, this Ceiling Light can be made into White, Black,Wooden, Matt Chrome, etc, all depends on your requirement.
Color Temperature Changeable, you can choose warm white, natural white or cool white by the DIP switch on the back of the ceiling light, offer a better lighting in your lovely home.
DIY Interchangeable Trim Interchangeable bezel, polish chrome, stain nickel, black, or OEM color available
Feature
Ultra slim design (3.5cm thickness) Pre-set switch to set color temperaturbefore installation Quick terminal (save labor cost)
High lumen output for the LED module to meet with the New ERP2.0 requirement,and also can be made into Tuya WiFi smart control for your Smart Home.
Application in your lovely room, you can choose warm white, natrual white and cool white accordingly. IP54 rated to stop the insets & dust going into the lamp body, no maintenance in the future.
High energy efficiency
Easy installation, with twist and lock style for the diffuser, very easy to install the lamp, save your time and money.SAFETY WARNING: The installation should be carried out by a qualified electrician in compliance with the current edition of the IEE Wiring Regulations.

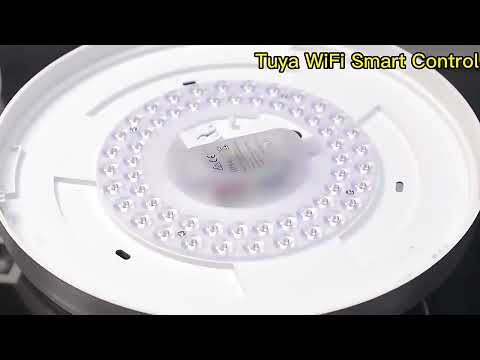

Product Video
Click to view our YouTube product video and see how easy it is to transform your environment with our innovative lighting solutions.
Create a home that
Revitalizing Every Inch of Light
High power conversion efficiency
High energy efficiency, no flicker
Product Parameters
- Size：∅ 250MM / 300MM /380MM
- Wattage： 12W / 15W / 28W
- Voltage：120-270 VAC, 220-240VAC
- Lumen：90LM/W
- CCT Change：2700K~5000K
- CRI：Ra>80 Ra>90
- SDCM：SDCM <3
- Beam Angle：100°
- Dimmable Option：Triac-dim, Tuya Smart Dim
- Material：PS
- Environment：Indoors
- Sensor Function：Microwave Sensor
- Installation：Surface mounted
- Approval：CE,EMC,LVD,ROHS,ERP,UKCA,ETL,SAA
- Lifespan：25,000hrs
- IP：IP54
- IK：IK03
- Warranty：3 Years
