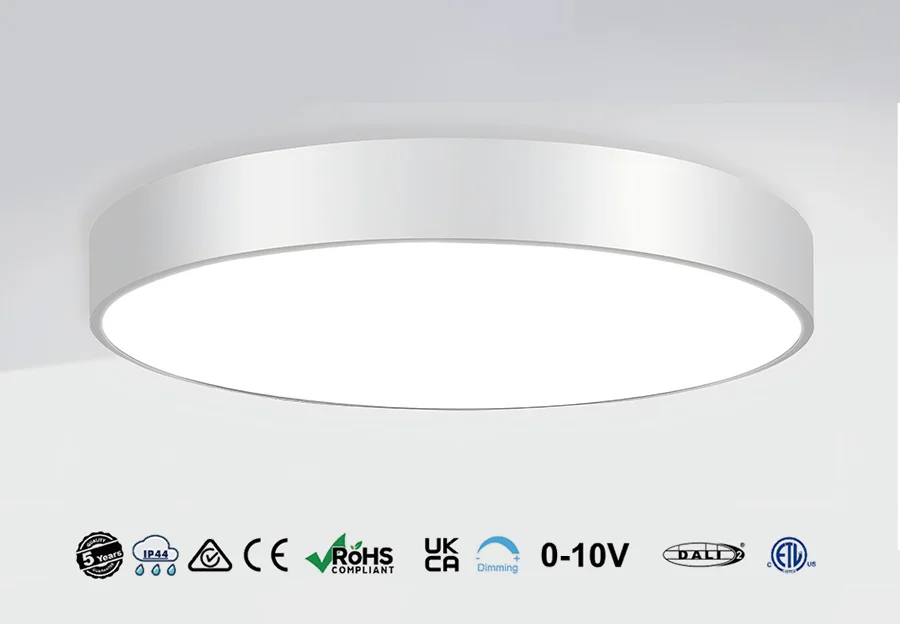

BIG IP44 Ceiling Light
Lighting innovation in all shapes (and colours)
This IP44-rated LED fixture prevents dust and insect ingress, ensuring consistent illumination without shadows. Available in 300mm–1000mm lengths, it offers dual power supply compatibility and 3CCT adjustability via DIP switch, delivering 120lm/W efficiency. The UGR<19 anti-glare primastic design ensures comfortable lighting. Finished in Akzo matte Black/White with optional macaron colors, it supports Dali 2.0 control for hotel, office, and commercial projects. Offers flexible surface/pendant mounting.
Key Features:
IP44 Protection: Sealed against dust/insects for reliable performance
Size Range: 300mm, 400mm, 600mm, 800mm, 1000mm
Customization: 3CCT selection (2700K/4000K/5000K) via DIP switch
Optics: UGR<19 primastic lens for glare-free illumination
Finish: Akzo matte coatings in Black/White + macaron color options
Control: Dali 2.0 compatible for smart lighting systems
Installation: Surface/pendant mounting with dual power support
Register Now
Log in to view the download manual
Product Line Map
C Series 300 Circular Line Chart
Click to view our PDF brochure to learn more.
C Series 400 Circular Line Chart
Click to view our PDF brochure to learn more.
C Series 600 Round Ceiling Light Line Drawing
Click to view our PDF brochure to learn more.
C Series 800 Line Drawing
Click to view our PDF brochure to learn more.
C Series 1000 Line Chart Model (1)
Click to view our PDF brochure to learn more.
Specifications
C Series Ceiling Light Specs 4-30
Click to view our PDF brochure to learn more.
Product Certificates
CE-SAA
Click to view our PDF brochure to learn more.
231206133GZU-001_5017490_ATM_Security
Click to view our PDF brochure to learn more.
231206133GZU-001_CDR_Z3_Security
Click to view our PDF brochure to learn more.
Test Report
IES C1000 100W 2700K 120LM&W RA80 100D White No.10
Click to view our PDF brochure to learn more.
JFQ 116164 80W100W 2700K-3000K-4000K RA80 C1000 Ceiling Light Sand White 02
Click to view our PDF brochure to learn more.
Installation Instructions
C Series ø300 400 600 Ceiling Light Instructions
Click to view our PDF brochure to learn more.
From Concept to Creation
The Art of Lighting
You have the choice
Color Temperature Changeable, you can choose warm white, natural white or cool white by the DIP switch on the back of the ceiling light, offer a better lighting in your lovely home.
Alu lamp body offer a strong product, and the igh quality diffuser to make the lighting outpur more smoothly. High lumen output for the LED module to meet with the New ERP2.0 requirement
Feature
Sensor Rang & Energy Saving(Detection area:140 degree, wide detective beam angle with 8 meters distance).SPCC imported cold plate design material texture are stronger than before,High power conversion efficiency High energy efficiency, no flicker,Use high quality led chips, low light decay.
High energy efficiency
Alu lamp body offer a strong product, and the igh quality diffuser to make the lighting outpur more smoothly. High lumen output for the LED module to meet with the New ERP2.0 requirement,
Product Video
Click to view our YouTube product video and see how easy it is to transform your environment with our innovative lighting solutions.
Create a home that
Revitalizing Every Inch of Light
High power conversion efficiency
High efficiency, no noise
Product Parameters
- Size：∅ 300MM /400MM /600MM /800MM /1000MM
- Wattage： 15W/20W 20W/30W 40W/50W 60W/70W 80W/100W
- Voltage：120-270 VAC 、 220-240VAC
- Lumen：120LM/W UPTO 160LM/W
- CCT Change：2700K~5000K
- CRI：Ra>80 Ra>90 Ra>97
- SDCM：SDCM <3
- Beam Angle：100°
- Dimmable Option：Triac-dim, DALI dim, 0-10V + Traic dim，TUYA
- Material：Aluminum
- Environment：Indoors
- Sensor Function：Microwave Sensor
- Installation：Surface mounted, Suspended
- Approval：CE,EMC,LVD,ROHS,ERP,UKCA,ETL,SAA
- Lifespan：50,000hrs
- IP：IP44
- IK：IK06
- UGR：UGR<19@2H
