- 2580 LED Linear light

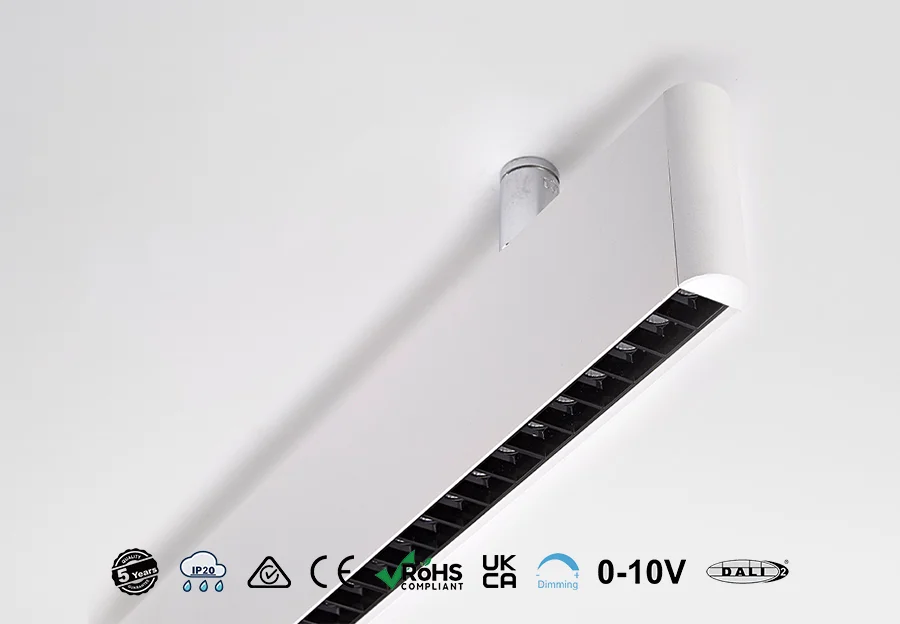

2580 LED Linear light
Lighting innovation in all shapes (and colours)
Akzo-coated (White/Black) slimline fixture with screwless, anti-glare design. Features independently adjustable CCT control for up/down lighting. Available in 1.2m (linkable, surface/pendant) and 1.5m (pull-cord + motion sensor) models. Equipped with dual Triac/DALI dimming. Ideal for energy-efficient, customizable office illumination.
Key Features:
Optics: UGR<19, SDCM<3, 120lm/W
Control: Separate CCT adjustment, Triac/DALI dimming
Smart Options: 1.5m model includes motion sensor
Design: Screwless, premium Akzo finish
Lengths: 1.2m (linkable) / 1.5m (sensor-ready)
Register Now
Log in to view the download manual
Product Line Map
Office line lamp diagram
Click to view our PDF brochure to learn more.
Office strip light line diagram CCT
Click to view our PDF brochure to learn more.
Specifications
2580 Series Linear Lighting Specs 4-30
Click to view our PDF brochure to learn more.
Product Certificates
LCSB06114023E-Attestation of Compliance-1
Click to view our PDF brochure to learn more.
Test Report
IES 2580 line light on the glow is diffused plate under the glow for full grille independent CCT adjustment 30W 3000K RA80 100LM&W 1.2m 01
Click to view our PDF brochure to learn more.
Integrating ball 2580 line light New aluminum PC under cover Light glass fiber board 36W 3000K
Click to view our PDF brochure to learn more.
Installation Instructions
Installation Manuel
Click to view our PDF brochure to learn more.
From Concept to Creation
The Art of Lighting
You have the choice
Linear lights are usually designed with simplicity and smooth lines. They not only provide
lighting functions, but can also become part of interior decoration.
Feature
Linear lights generally use light sources such as LEDs, which can release soft and uniform light,
not only adding a warm feeling to the space, but also having a lighting effect.
it can be bent, folded, and installed in a variety of ways as needed to meet
the design requirements of different spaces.
High energy efficiency
Due to the use of high-efficiency energy-saving light sources such as LED, linear lights have lower
energy consumption and long life, which helps save energy and reduce environmental burden.
Product Video
Click to view our YouTube product video and see how easy it is to transform your environment with our innovative lighting solutions.
Create a home that Revitalizing Every Inch of Light
chips with optical lens
High quality LED chip, light decay is small
Product Parameters
- Size：1210*25*80mm
- Wattage：30W
- Voltage：220-240VAC
- Lumen：120LM/W
- CCT Change：2700K~5000K
- CRI：Ra>80
- SDCM：SDCM <3
- Beam Angle：100°
- Dimmable Option：Pull cord switch Dimming Dali
- Material：Aluminum
- Environment：Indoors
- Sensor function： Human Presence Sensor
- Installation：Suspended
- Approval：CE,EMC,LVD,ROHS,ERP,UKCA
- Lifespan：50,000hrs
- IP：IP20
- IK：IK10
- Functions：Direct/Indirect lighting mode selected by DIP switch
